Seven Segment LED

A 7 segment LED is basically just 7 LEDs arranged in a way to create the figure 8.
By turning on different LEDs, we can create different numbers.

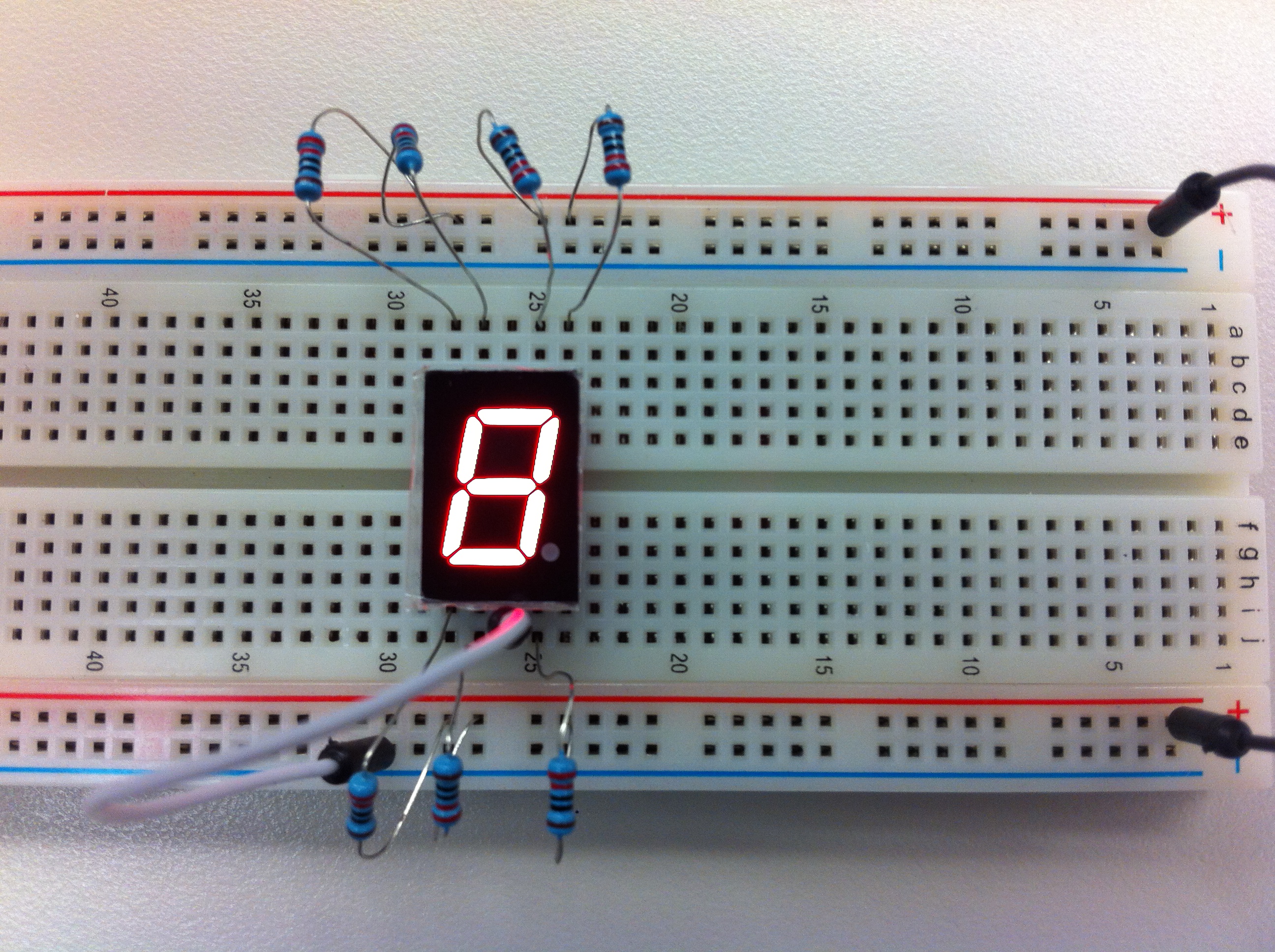

Here is an image of how to hook up he 7 segment LED.
It might take a few tries before you get it working.


In order to get very familiar with this LED, because we will be using it later, print and fill in the following worksheet.
